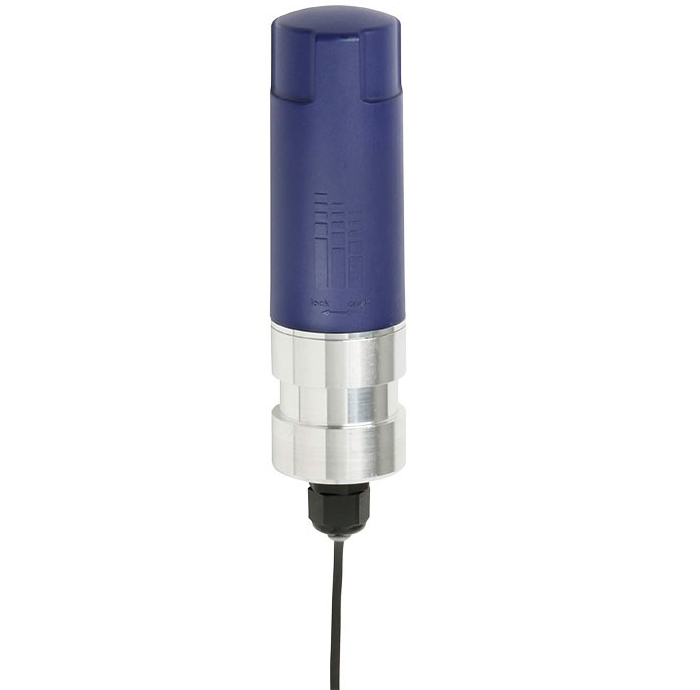

NETRIS_F

Description of the device

Strain transducers have been designed for applications in which there is a need to measure the deformation due to external forces acting on existing components. The transducer is simply screwed to the component. After the adjustment, the unit has the features of a force transducer. The strain transducer is fastened with four screws to an area of the structure where the relevant strain occurs. Combined strain transducers can be connected directly to a junction box that contains an amplifier for system control.

---

For more information see product site.

NETRIS_F Parser Quick Start

Parser API

All functions are pure (no global mutation) except adjustMeasuringRange which updates internal range configuration for subsequent decodes.

Types:

Input types:

interface UplinkInput {
  fPort: number // LoRaWAN FPort
  bytes: number[] // Raw payload as array of unsigned bytes (0-255)
  recvTime?: Date // Optional Date (if your LNS provides it)
}

interface HexUplinkInput {
  fPort: number // LoRaWAN FPort
  bytes: string // Raw payload as hex-encoded string (case-insensitive, even length)
  recvTime?: Date // Optional Date (if your LNS provides it)
}

Return type (shared by all decode helpers):

type Result = {
  data: Record<string, any> // Parsed key/value pairs
  warnings?: string[] // Non-fatal anomalies
} | {
  errors: string[] // Fatal or structural issues only
}

To understand the data field, take a look at the examples and the schema definition.

Supported channels to identify different sensors by:

type ChannelName = 'measurement' | 'device temperature'

Channels that support adjusting the measurement range:

type AdjustableChannelName = 'measurement'

Important note: NETRIS_F TULIP2 delivers battery voltage as part of the decoded measurement output, but that does not make it a real formal parser channel.

• Only measurement and device temperature are formal parser channels
• In TULIP2, battery voltage is delivered as measurement telemetry in decoded uplink output
• That battery voltage value is still not a real configurable or adjustable channel
• Battery voltage is not a configurable channel and must not appear as a channel2 configuration target
• adjustMeasuringRange('measurement', ...) only applies to the real configurable measurement channel

Channel Configuration:

Channel Name	Default Min	Default Max	Unit	Configurable
measurement	-312.5	312.5	µε	Yes
device temperature	-45	110	°C	No

decodeUplink(input)

function decodeUplink(input: UplinkInput): Result

decodeHexUplink(hexInput)

function decodeHexUplink(hexInput: HexUplinkInput): Result

bytes must have even length; case-insensitive.

adjustMeasuringRange(channel, range)

// Will throw on invalid channel name or if the channel disallows range updates
function adjustMeasuringRange(
  channelName: AdjustableChannelName,
  range: {
    start: number
    end: number
  }
): void

Applies to future decodes only.

adjustRoundingDecimals(decimals)

// Smartly adjust number of decimals for rounded values
// Impacts all numeric values in all outputs
// Default is 4
function adjustRoundingDecimals(decimals: number): void

Applies to future decodes only.

Verifying Measurement Ranges

Strain/force/mass channel: The default range (-312.5 to 312.5) may not match your device. Check your device specifications or purchase documentation for the actual configured range and engineering unit.

Device temperature: This channel has a fixed range that cannot be adjusted (-45 to 110°C).

Battery voltage: In TULIP2, this is delivered in decoded measurement output, but it is still not part of the formal parser channel configuration.

TULIP3 Identification Frames

For devices using TULIP3 protocol, identification messages (message type 20/0x14, subtype 1/0x01) report the actual configured channel unit and range.

Example TULIP3 identification frame:

{
  "data": {
    "messageType": 20,
    "messageSubType": 1,
    "identification": {
      "sensor1": {
        "channel1": {
          "measurand": "Strain",
          "unit": "µeps",
          "minMeasureRange": -312.5,
          "maxMeasureRange": 312.5,
          "channelName": "measurement"
        }
      }
    }
  }
}

TULIP2 Identification Frames

Identification messages (message type 7/0x07) confirm the configured ranges:

Example TULIP2 identification frame:

{
  "data": {
    "messageType": 7,
    "configurationId": 65,
    "deviceInformation": {
      "productIdName": "NETRIS_F",
      "measurementType": "relative",
      "measurementRangeStart": -312.5,
      "measurementRangeEnd": 312.5,
      "measurementRangeStartDeviceTemperature": -45.0,
      "measurementRangeEndDeviceTemperature": 110.0,
      "measurementUnit": 185,
      "unitName": "µeps",
      "deviceTemperatureUnit": 32,
      "deviceTemperatureUnitName": "°C"
    }
  }
}

---

Quick Start

1. Check your device's actual measurement range from device specifications or identification frames (see above)
2. If your LNS (LoRaWAN Network Server) is compatible you need to wrap the code in a global function:

function decodeUplink(input) {
  // Replace the placeholder with the corresponding code from the artifact
  var __commonJSMin=(e,t)=>()=>(t||(e((t={exports:{}}).exports,t),e=null),t.exports)

  // Replace values with your device's actual measurement range from specifications or identification frames
  adjustMeasuringRange('measurement', { start: -312.5, end: 312.5 })

  return decodeUplink(input)
}

function encodeDonwlink(input) {
  // Replace the placeholder with the corresponding code from the artifact
  var __commonJSMin=(e,t)=>()=>(t||(e((t={exports:{}}).exports,t),e=null),t.exports)

  // Replace values with your device's actual measurement range from specifications or identification frames
  return encodeDonwlink(input)
}

3. Add wrapper function if your network server is non-compliant: function decode(input) { return decodeUplink(input) }

NPM Module Inclusion

Device	Included	Factory function
NETRIS_F (prev. F98W6)	✔️	NetrisFParser
